WPW (Wolff-Parkinson-White Syndrome)

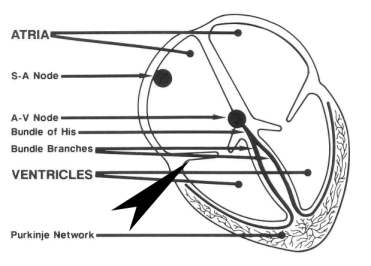

Wolff-Parkinson-White (WPW for short) is a syndrome in which pre-excitation of the ventricles can occur due to impulses traveling through an accessory pathway in the heart from the atria to the ventricles. The arrow in the diagram below points to an area of the heart where this may typically occur. Individuals may have multiple accessory pathways. WPW is a form of supraventricular tachycardia (SVT).

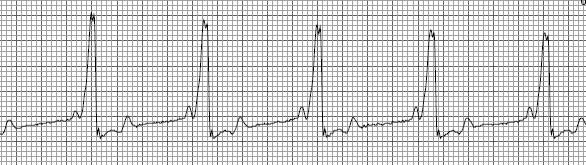

The initial diagnosis of WPW is frequently made from a resting EKG as shown below.

When one compares the complexes and measurements in this EKG, which displays WPW to the Normal Heart Rhythm, you will note four differences. First, the PR interval is shorter than normal, in this example it is .06 seconds vs the normal range of .12-.20 seconds. Second, you will note that the initial portion of the QRS complex does not rise as quickly as normal. This is referred to as a delta wave. Third, the QRS complex is wider than normal, in this case .16 seconds vs. the normal range of .04-.10 seconds. Last, the ST segment is depressed and the T wave is what is called biphasic. The heart rate in this example is 68 beats per minute.

The reason these changes occur is because in addition to the impulse traveling as it normally does through the AV node and the bundle branches, it also travels through an accessory pathway. However, the accessory pathway does not delay the signal (resulting in a short PR interval) and therefore, one of the ventricles is activated prior to other ventricle resulting in the changes described in the above paragraph.

The problem with WPW is not the changes described above, but rather the rapid rhythms that can occur as a result of the accessory pathway. In the normal heart, electrical signals only travel from the atria to the ventricles. However, when an accessory pathway exists, signals can also travel retrogradely, that is from the ventricles to the atria. When this happens, it can cause the atria to become stimulated far sooner than they should since the stimulus is actually coming from the ventricles, not the SA node. This rapid rhythm can then “feed” on itself causing very rapid rates.

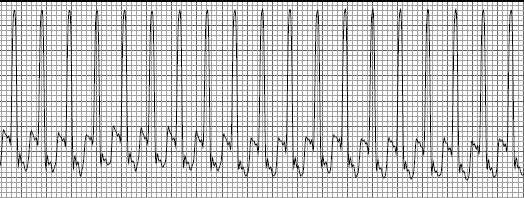

The EKG strip above is from the same individual as the first strip on this page. In this case, the patients heart rate is 275 beats per minute.


Some patients with WPW as identified through the characteristics in the first EKG may never have a problem if the accessory pathway does not conduct signals retrogradely or does not conduct signals at a rapid rate. Other individuals may be prone to rapid rates as shown in the second EKG. These patients may describe their symptoms as rapid rate, palpitations or pounding and may also experience lightheadedness, dizzziness or syncope (passing out). Treatment may involve the use of medications or cardioversion if the patient is in the rapid rhythm when being evaluated and is symptomatic. The permanent solution may be the use of an ablation to destroy the accessory pathway.

Wollf-Parkinson-White is named for the three physicians who first described this condition.
